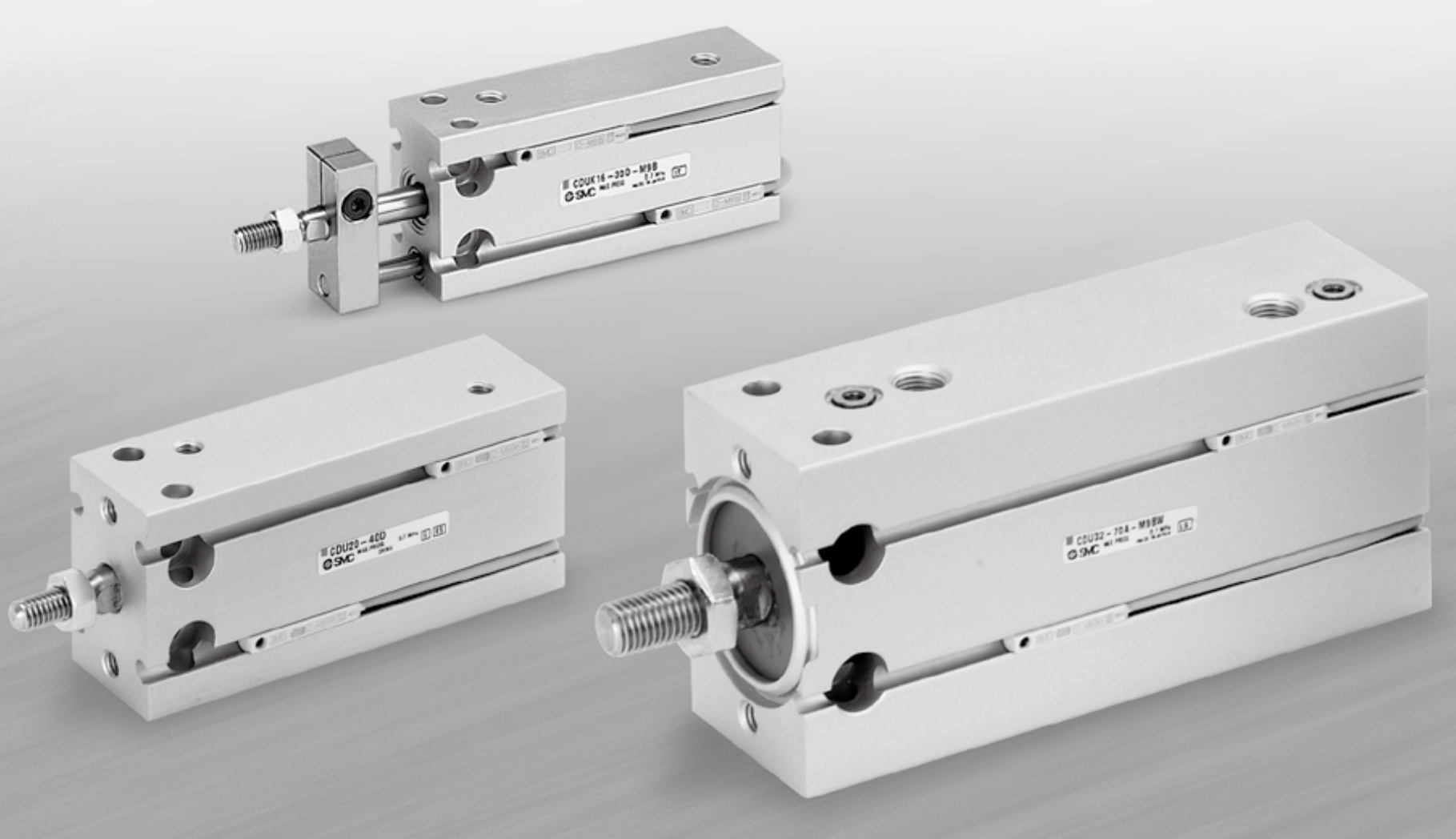

- Dòng xi lanh compact có thể lắp đặt trên nhiều bề mặt, tiện lợi và tiết kiệm không gian lắp đặt.
- Cảm biến xi lanh áp dụng cho các series : CDU, CDUW, CDUK, CDUKW, CDU-A,ZCDUK
| TYPE | SERIES | ACTION | BORE SIZE (MM) |
|---|---|---|---|
| Standard | CU | Double acting single rod | 6，10，16，20，25，32 |
| Standard | CU | Single acting (Spring return/extend) | 6，10，16，20，25，32 |
| Standard | CUW | Double acting double rod | 6，10，16，20，25，32 |
| Non-rotating piston rod | CUK | Double acting single rod | 6，10，16，20，25，32 |
| Non-rotating piston rod | CUK | Single acting (Spring return/extend) | 6，10，16，20，25，32 |
| Non-rotating piston rod | CUKW | Double acting double rod | 6，10，16，20，25，32 |
| Long stroke/Standard | CU | Double acting single rod | 6，10，16，20，25，32 |
| Long stroke/ Non-rotating rod |
CUK | Double acting single rod | 6，10，16，20，25，32 |
| With air cushion | CU-A | Double acting single rod | 20，25，32 |
| For vacuum | ZCUK | Double acting single rod | 10，16，20，25，32 |
